Alias Descriptions

Configuration

Alias used to describe HTTP Pneuron action


Config Options

  • Description: Description.
  • Throttle: Determines if alias should be throttled or not.

DB Source

Alias for JDBC/ODBC connections

Config Options

  • Database Properties: Default
  • Driver: Which database you want to use. Custom Driver is for unsupported drivers.
  • Driver Class: The class used in the jdbc connection. Only needed in Custom Driver
  • Driver URL: The connection string used to connect to the database. Only needed in Custom Driver.
  • Host: Host URL name.
  • Instance: Database name you want to connect to.
  • Password: Password of user you connect with. May not be needed based on database settings.
  • Port: Port number of database.
  • Schema: URL Schema.
  • Throttle: Determines if connection should be throttled or not.
  • Username: Username of user you connect with.

Qubz Example

image.png Instance: Project Name within Qubz

Hive Example


Directory

Alias for directory on the local machine. Allows Pneurons to access file system. This alias can only be created in the Administration platform.


Config Options

  • Delete Permission: Does this alias allow for deletion? Yes or No.
  • Directory File Path: File path to directory for used by the alias.
  • Directory Host: Host the directory is on.
  • Maximum Available Space: Max file space allowed to be used in directory.
  • Subfolder Max Depth: Max subfolders allows to be made by Alias
  • Throttle: Determines if alias should be throttled or not.
  • Write Permission: Does this alias allow for writing? Yes or No.

Event Hubs


Config Options

  • Consumer Group: Consumer group set in Azure portal. Default option is $Default
  • Container Name: Container name set in Azure portal.
  • Event Hub Connection String: Event hub connection string available in event hub options menu in Azure portal
  • Storage Account Connection String: Storage account connection string available in storage account menu in Azure portal.
  • Throttle: Determines if alias should be throttled or not.

FTP

Alias for FTP and SFTP connections. Used in FTP Pneuron.


Config Options

  • Data Timeout: Timeout for actions on FTP server in seconds.
  • Debug: Debug messages enabled? Yes or No
  • Delete Permission: Does this alias have delete permission? Yes or No
  • Driver: What driver to use in connection. Either FTP or SFTP.
  • Host: Host string of FTP connection.
  • Password: Password needed to connect to FTP server
  • Port: Port needed to connect to FTP server. Usually 20 or 21.
  • Throttle: Determines if alias should be throttled or not.
  • Username: Username needed to connect to FTP server.
  • Working FTP Directory: Directory you want alias to work out of.
  • Write Permission: Does this alias have write permission? Yes or No.

HTTP

Alias for HTTP and Service Pneurons. Allows for connections to REST and SOAP APIs.


Config Options

  • Password: Password of user you connect with. May not be needed.
  • Send Method: Method used to iteract with API. Either Get or Post.
  • Throttle: Determines if connection should be throttled or not.
  • URL Address: URL of the API. Must include scheme and swagger.
  • Username: Username of user you connect with.

JMS

Alias use to connect with JMS Queues. Used in JMS Listener and JMS Publisher Pneurons.


Config Options

  • JMS Client Type: Type of client for JMS Queue. Currently Supports three types: ActiveMQ, ActiveMQFailover, Kafka.
  • JMS Context/Queue Manager Name: JMS Context string.
  • JMS Topic/Queue: Which topic and queue that you want messages read and written to.
  • JMS URL: URL of the JMS queue.
  • Throttle: Determines if connection should be throttled.

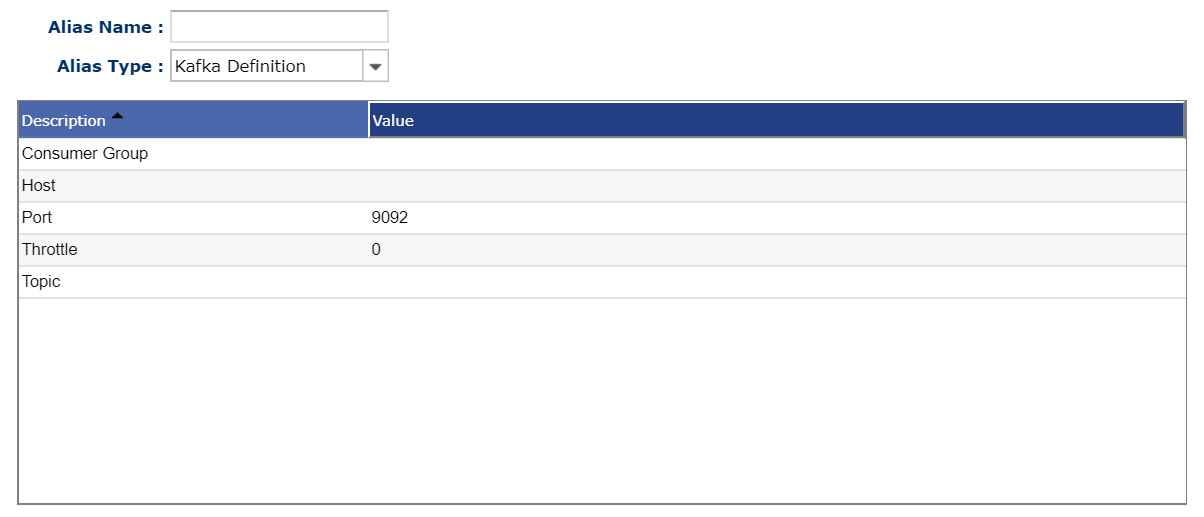

Kafka

Alias for Kafka listeners and publishers


Config Options

  • Consumer Group: The consumer group name for listeners. All listeners with the same consumer group will share the same offset.
  • Host: Host for the Kafka server.
  • Port: Port for the Kafka server. Defaults to 9092.
  • Topic: The topic this alias listens/writes to.
  • Throttle: Determines if connection should be throttled.

Mail

Mail alias used to send and read emails. Used in Mail and Mail Reader Pneurons.


Config Options

  • Domain Patterns: Any domain patterns needed to connect to mail server.
  • Enable Session Debug: Debug enable.
  • Host: Host string for connection.
  • Password: password used to connect to mail server.
  • Port: Port used to connect to mail server.
  • Protocol: Which mail protocol your server is useing. SMTP, IMAPS, and POP3
  • SSL/TLS: Are you using TLS or SSL? YES or NO.
  • StartTLS: Are you using StartTLS? YES or NO.
  • Throttle: Determines if connection should be throttled.
  • Username: Username used to connect to mail server.

NoSQL

Alias used to connect to NoSQL data source. Used in NoSQL Pneuron.


Config Options

  • Additional Configuration: Any additional configuration needed.
  • Custom Driver: Custom Driver used to connect to unsupported NoSQL database.
  • Database: Name of database you want to use with this alias.
  • Driver: Driver used to connect to certian database. MongoDB, CouchDB, or Cassandra.
  • Host: Host of the NoSQL database.
  • Password: Password used to connect to database
  • Port: Port of database.
  • Throttle: Determines if connection should be throttled.
  • URL: URL of database. Only used with Custom Driver.
  • Username: Username user to connect to database.

Spark

Alias for Spark Pneuron


Config Options

  • Deployment Mode: There are two deploy modes that can be used to launch Spark applications on YARN. In cluster mode, the Spark driver runs inside an application master process which is managed by YARN on the cluster, and the client can go away after initiating the application. In client mode, the driver runs in the client process, and the application master is only used for requesting resources from YARN. If you are not using Yarn leave as Client.
  • Java Installation Path: Path to java installation path. If a environmental variable is setlike JAVA_HOME you do not need to fill this in.
  • Master: What is the master node. To use yarn as the master enter yarn for spark standalone enter the URL of the master node for example spark://127.0.0.1:7070.
  • Properties File Path: File path to any properties needed.
  • Spark Arguments: A comma delimited list of arguments you want to enter into Spark.
  • Spark Configuration: Any Spark config options.
  • Spark Installation Path: Sparks installation Path on the machine. You do not need to set this if you do not have a environmental variable set such as SPARK_HOME.
  • Spark Working Directory: Directory that contains working items.
  • Throttle: Determines if connection should be throttled.

Setup new alias types in existing databases

To add new alias types into older databases, re-run the Pneuron setup script after installing the latest build:

>bin/setup

Select Update privileges on existing databases

>8

>sos-legacy

Select Generate Aliases for the new added drivers

>2
